KTI - SAUTER TURBO

The KTI – SAUTER TURBO is used when high performance is required for tempering concrete.

The TURBO produces hot water as well as hot air with only one burner. It achieves water temperatures of 85 °C and air temperatures of 250 °C.

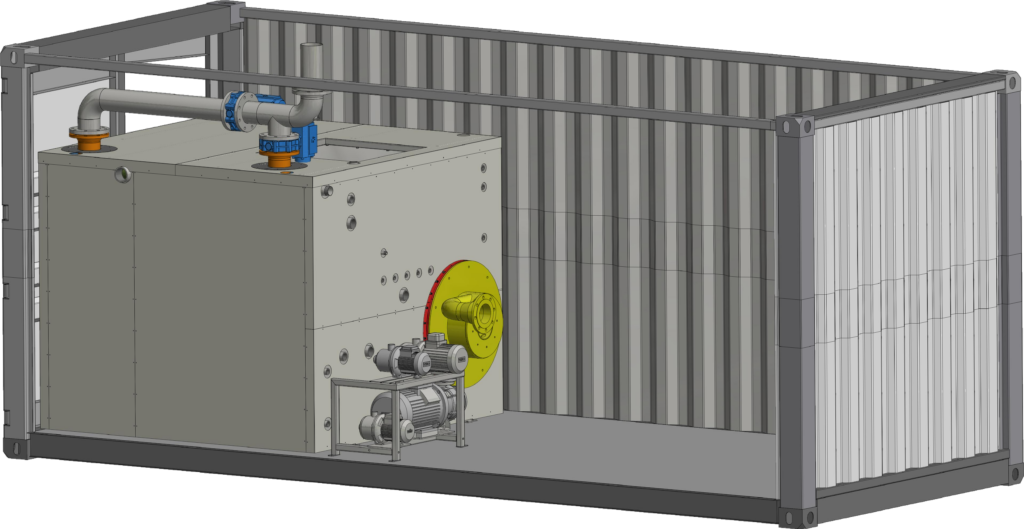

The TURBO first sends the combustion air through a heat exchanger to generate hot water. It then flows through the sand and rock silos. The thermal energy is virtually fully utilized in the process.

Plant information

The KTI SAUTER TURBO generates Hot air and hot water with only one central burner. While the required fresh water is heated via the heating coil, a mixture of hot Combustion gas and air through the silosto temper the aggregates and the sand. Thus, all the thermal energy is used for heating the concrete and Losses minimized. If high to very high performance is required, the KTI SAUTER TURBO is the most economical system The TURBO concept is based on SAUTER heating components that have been tried and tested over many years and have proven to be absolutely reliable. Only materials and parts that meet the highest standards are used. These include, among other things, a Stainless steel heat exchanger, a perfect insulated hot water tank (6 or 8 m³) and a modern burner for robust operation with a Power 1000 or 1500 kW. All TURBOs are supplied with an integrated STEAM function for fast Defrosting the aggregates with steam supplied. Injection of water into a mixture of hot air and exhaust gas increases the effectiveness at very high temperatures. Hereby the concrete heating is possible within a very short period of time. The TURBO is not classified as pressure equipment and therefore does not have to undergo the annual inspections, which makes the Reduces maintenance costs.

The most important details at a glance

4

Model variants

1

Burner

250

°C Hot air

85

°C Hot water

Your advantages of a KTI - SAUTER TURBO

  • The KTI - SAUTER TURBO is the most economical concrete heating system in the case of great performances.
  • The KTI - SAUTER TURBO warms up Air and water with only one burner.
  • The KTI - SAUTER TURBO Fully utilizes the thermal energy off.
  • The KTI - SAUTER TURBO comes with STEAM function for the Rock defrosting with steam.
  • The KTI - SAUTER TURBO does not require a chimney, the chimney is the silo.

Product details

TURBO 1000
TURBO 1500
Power
950 kW
1350 kW
Hot water temperature, max.
85 °C
85 °C
Hot water quantity (at 40°C heating)
15 m³/h
22,5 m³/h
Hot water quantity (at 60°C heating)
10 m³/h
15 m³/h
Hot water tank
6000 l
8000 l
Hot air temperature, max.
250 °C
250 °C
Hot air quantity
1200 m³/h
1700 m³/h
Print
400 mbar
400 mbar
Steam generation, water quantity
100 l/h
170 l/h
