KTI automatic ice storage (MIS/MIS-b)

KTI ice storage systems (MIS/MIS-b) serve as buffer storage to cover power peaks in ice demand. The ice storage is actively cooled, therefore storage temperature and humidity remain constant. Perfect storage conditions for flake ice and plate ice.

The ice can be stored for several days and still remain transportable via screw conveyors or blower systems.

Send Inquiry

Plant information

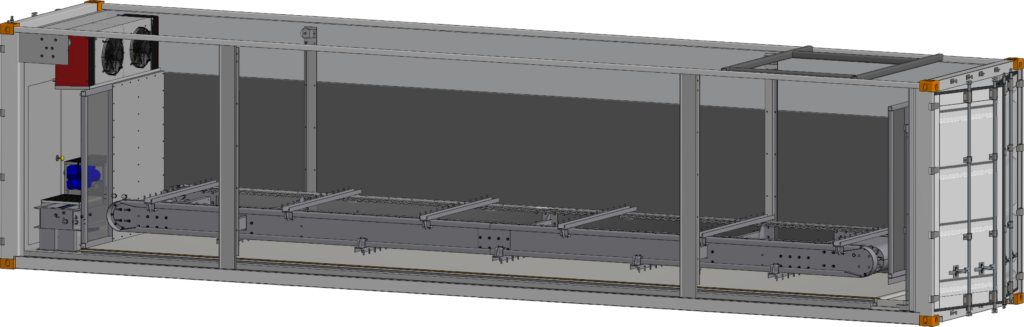

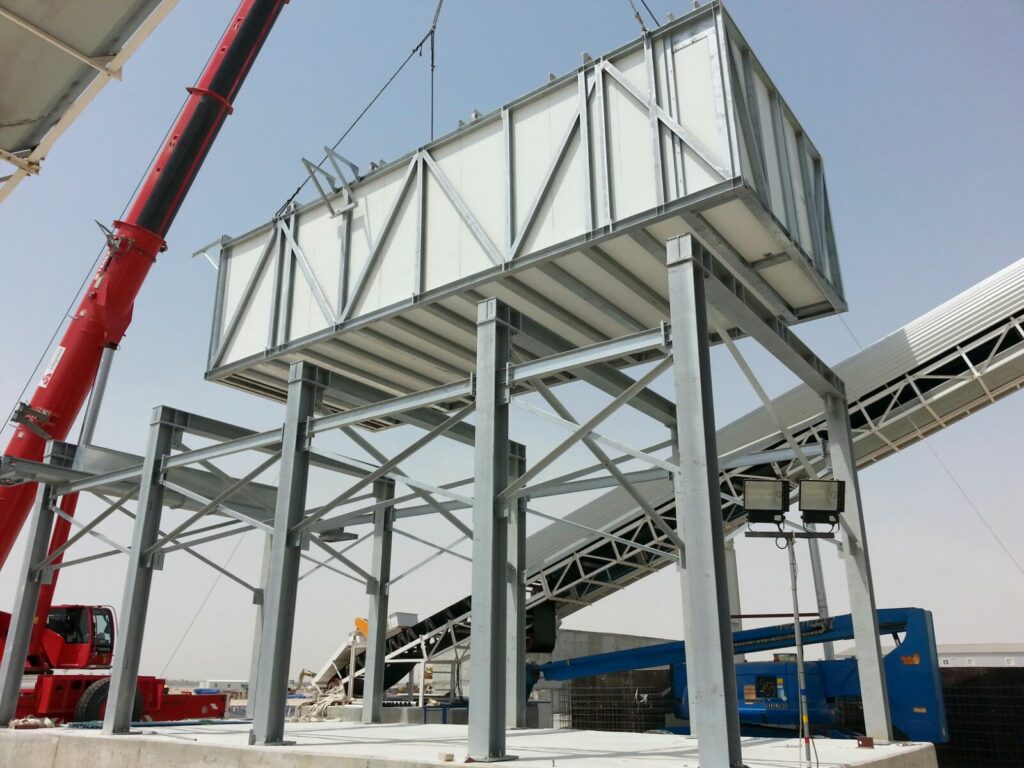

KTI ice storage systems are specially developed solutions that store ice properly and keep it transportable. The demountable ice storage units (MIS-b) are almost identical in construction to the mobile ice storage units (MIS), but can be dismantled for transport in containers. Up to a capacity of 23 tons, the ice storage units are installed in 40-foot containers.
  • Capacity between 23 and 120 tons. Special sizes up to 250 tons possible.
  • In conjunction with plate ice or flake ice systems, the entire daily output can be called up and temporarily stored in the ice storage - and be retrieved as needed.
  • Due to the modular design perfectly combinable with any ice plant (flake ice, plate ice).

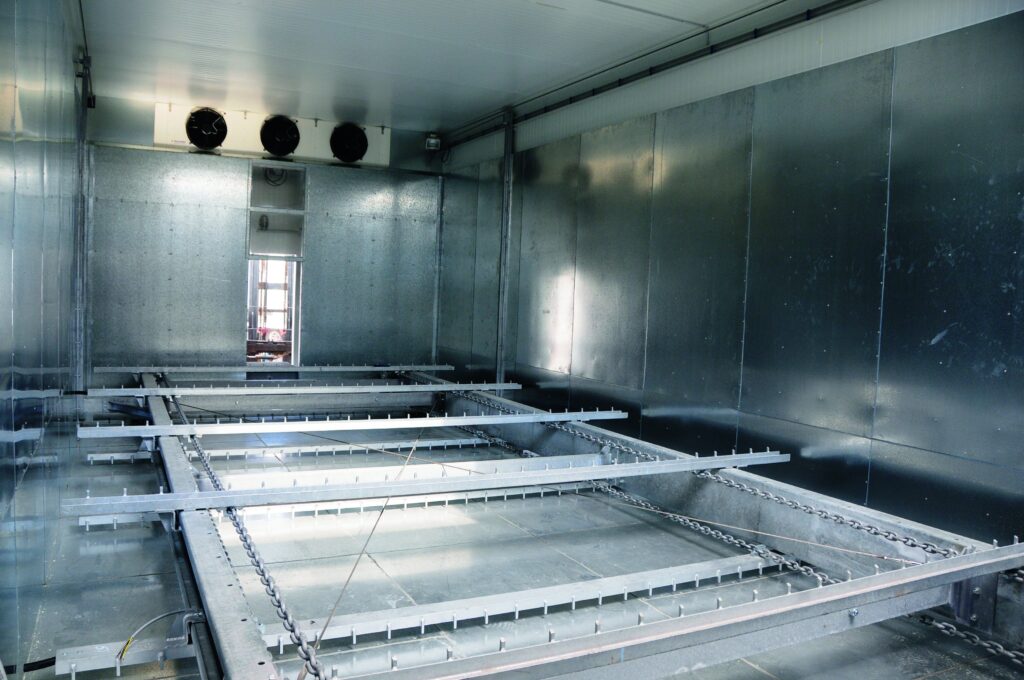

  • During filling the circulating rake levels the ice and distributes it over the entire length of the ice storage.

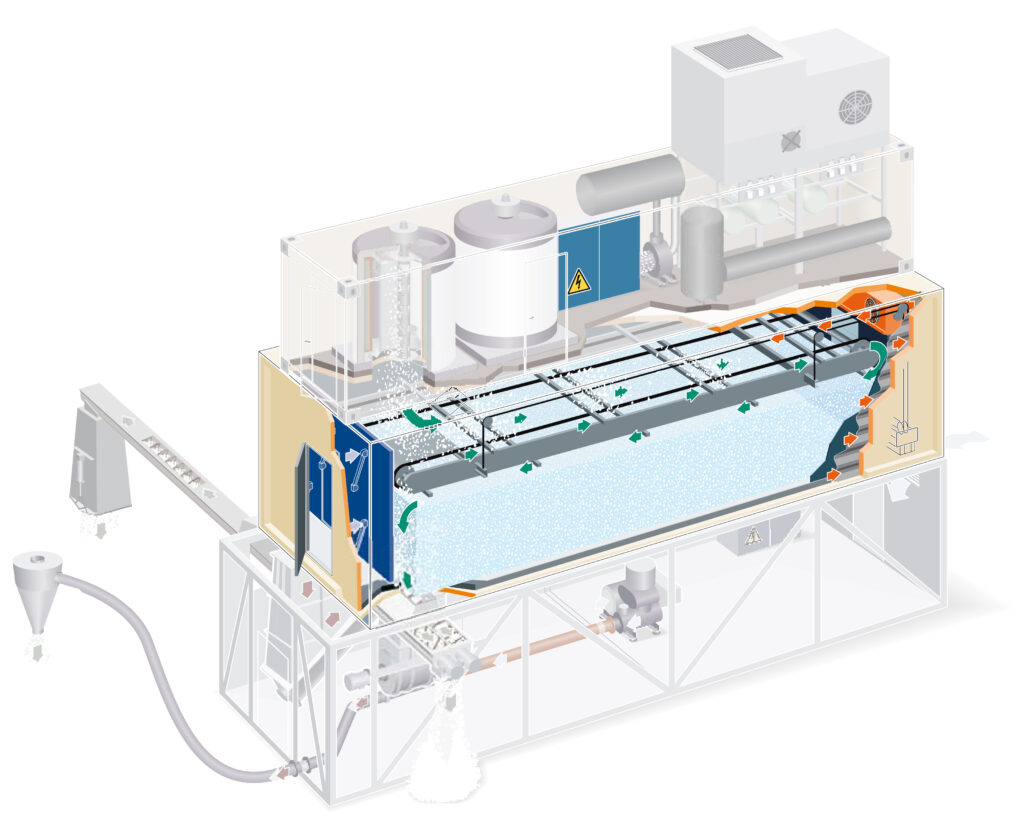

  • Patented air circulation and room cooling provide for perfect climate to make ice good to store and transport.
  • Discharge screw can discharge the ice either in 1, 2 or 3 directions.

The most important details at a glance

23 - 120

Tons storage volume

< 0

°C Room temperature

> 7

Days storage period

1 - 3

Ice outlets

Your advantages of the KTI ice storage (MIS/MIS-b)

  • KTI ice storage facilities can store large amounts of ice and perfectly compensate for peaks in demand.
  • KTI ice storages can fast After connecting the power and water supply be put into operation.
  • KTI Ice storages can be used with any ice plant (Flake ice and slab ice) be combined.
  • KTI Ice storages are equipped with patented double wall insulation equipped for optimal air circulation.

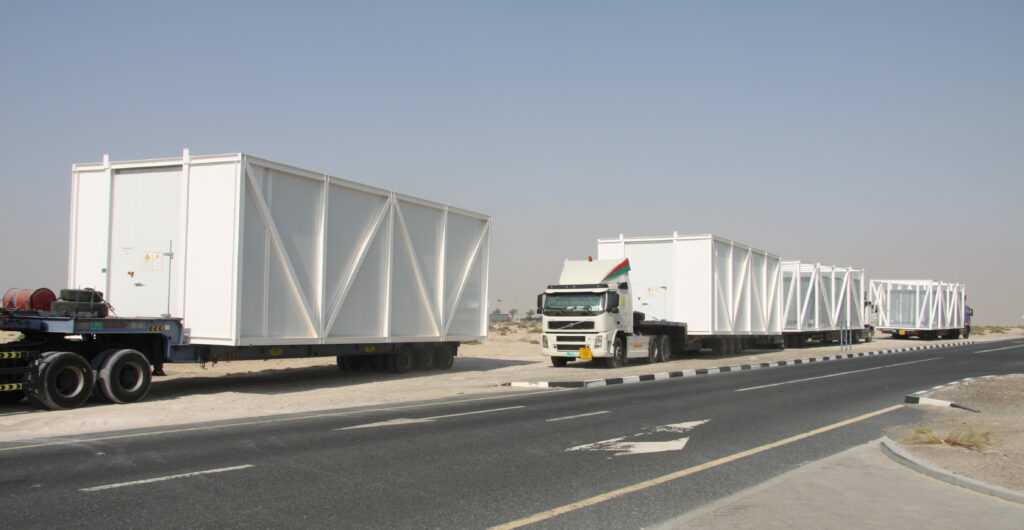

  • KTI Ice storages can be attached to transported to any place in the world and be built there.

Expert knowledge

KTI ice storage systems are required in all areas where a lot of ice is needed at a certain time. Therefore, our systems are always used together with our ice plants. The automated storage of ice and ice discharge now helps our customers to have a system that can also be easily integrated into industrial process.

Emilio Sans

Application Manager - Fish & Seafood

Product details

Storage volume
23 - 120 tons, special sizes up to 250 tons
Ice types
Flake ice, slab ice, tube ice
Room cooling
extra large air circulation
Ice discharge

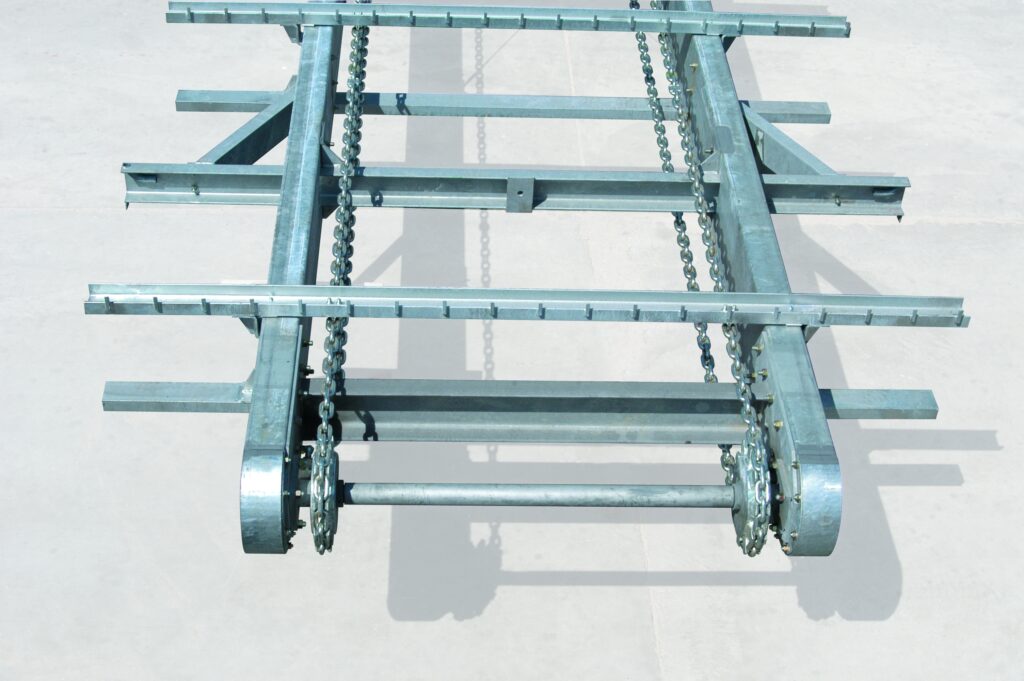

fully automatic ice rake (hot-dip galvanized, stainless steel)
Ice production
Discharge screws (single, double), simultaneous conveying with two screws possible
Execution
Standard or tropical
Certification
CE, CSA, UL compliant, others possible
Power supply
50 or 60 Hz, special voltages possible
Control
Siemens PLC, color touch screen
Optional
Steel frame to increase ice storage and accommodate conveyor systems or water tank, pneumatic pusher for bag loading.
