Production of mass concrete

In the manufacture of solid components, the temperature maximum in the core and the temperature difference between the component core and the component edge must be maintained in order to avoid damage due to stresses caused by the different volume expansion in the interior and exterior.

What concrete temperature must my mass concrete be?

Fresh concrete Limiting the temperature of the fresh concrete is a simple way of Maximum component temperature to be limited. In the case of massive components, a limitation to the following has proven to be effective in practice maximum 25°C proven. This has also found its way into specific sets of rules. A limit below this can also make technical sense. For example, the average annual ambient temperature or, in tunnel construction, the rock temperature is often used as a rule of thumb. Hardened concrete The maximum temperature in the component core of the cast concrete can be determined by calculation and, in addition to factors such as component thickness and cement type, is essentially dependent on the fresh concrete temperature. The maximum permissible concrete temperature indirectly determines the fresh concrete temperature. In order to avoid stress cracks, a maximum temperature difference of 20K between the core and the edge of the component is generally assumed. However, if expansions in the component are completely hindered, temperature differences of approx. 10K already lead to cracks in the concrete.

What are the measures for maintaining the fresh concrete temperature?

Especially at high outside temperatures, the required fresh concrete temperatures can only be achieved by appropriate cooling or heating measures. KTI is a specialist in this field and has Many years of experience for cooling and heating of mass concrete: Our recommended measures for maintaining fresh concrete temperature are:

Protected storage of the aggregates to avoid freezing or heating up

Active cooling or heating of the aggregates

Cooling or heating the addition water

Addition of plate ice or flake ice at high ambient temperatures

Ensure short transport routes for the concrete

Pipe internal cooling, so-called post-cooling, in the concrete component with cold water

Our solutions for temperature control in mass concrete

KTI has the perfect solutions in its portfolio for temperature-controlled production of mass concrete and is a complete supplier of solutions for mass concrete production from -20°C to +50°C.

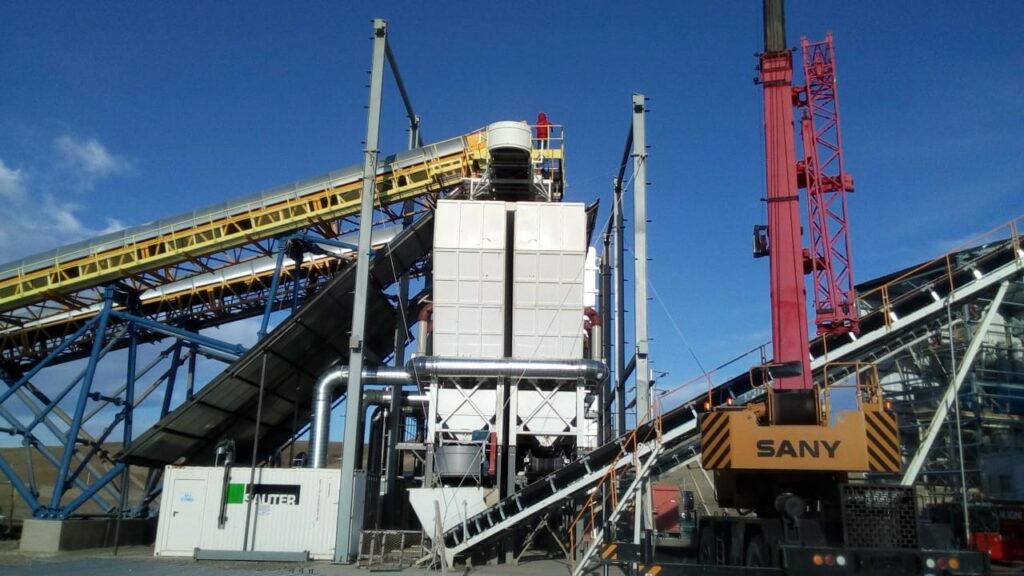

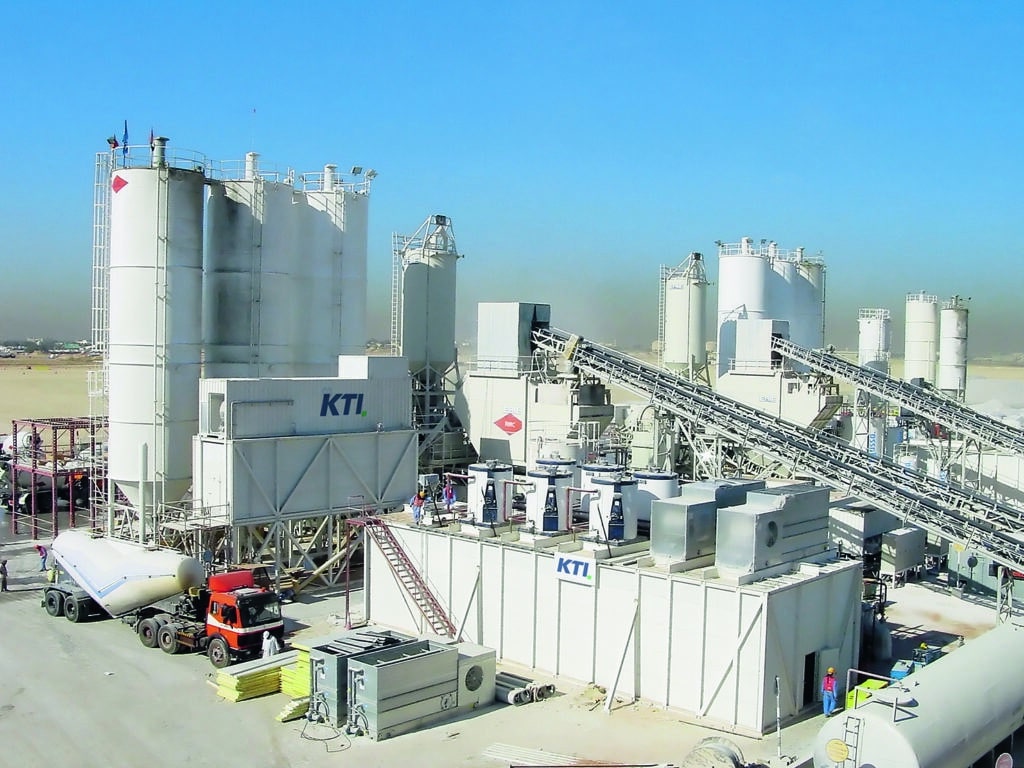

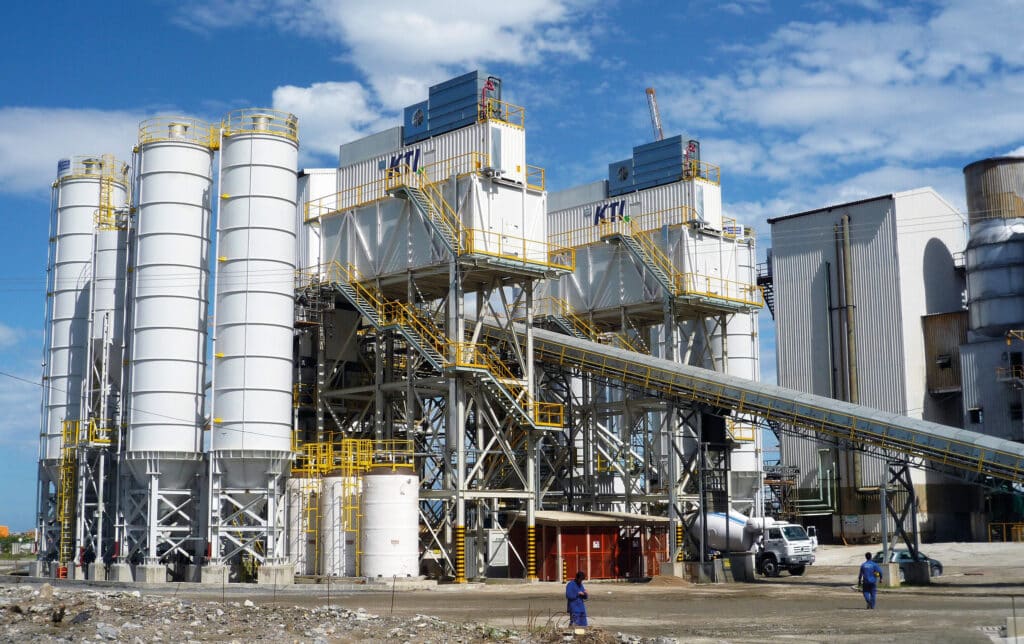

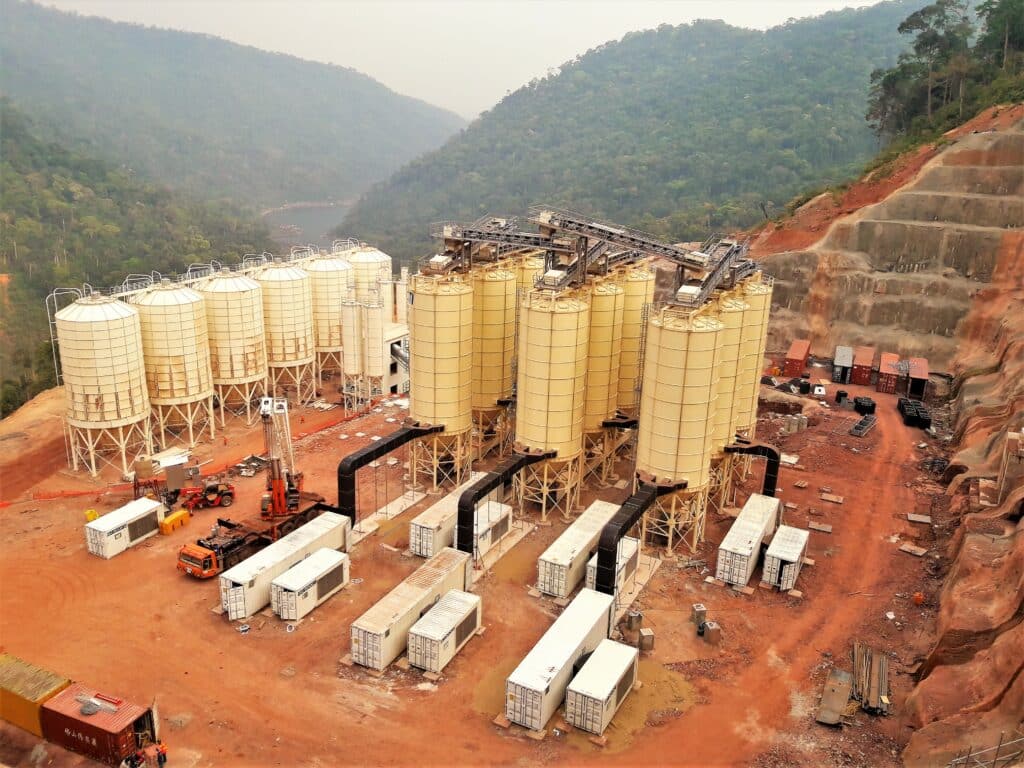

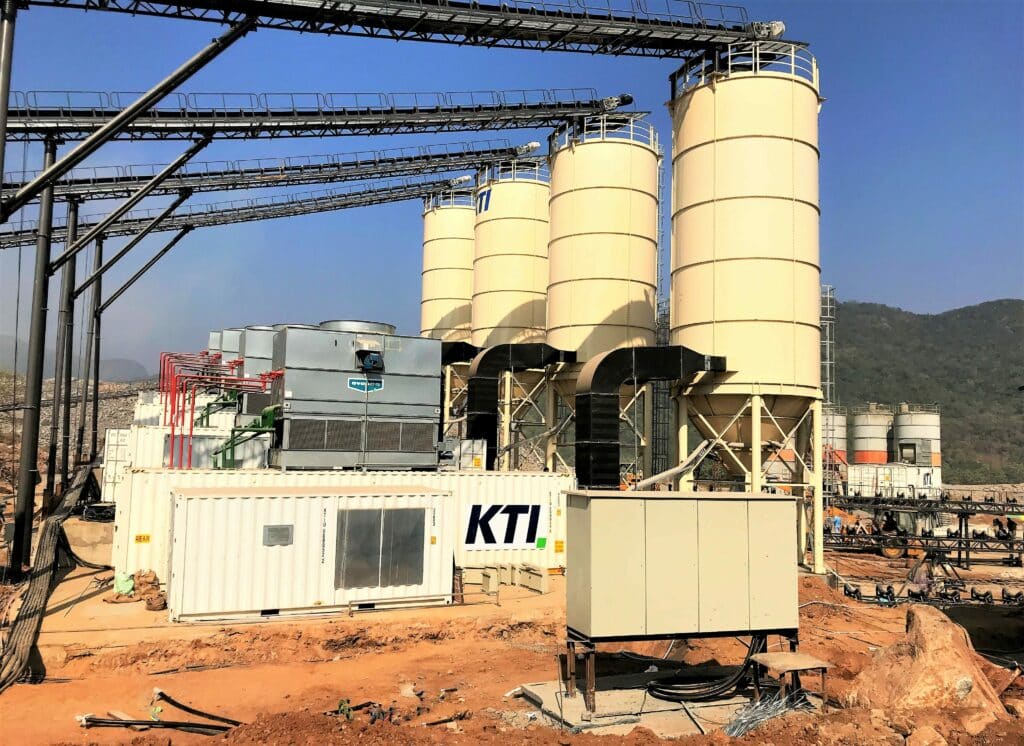

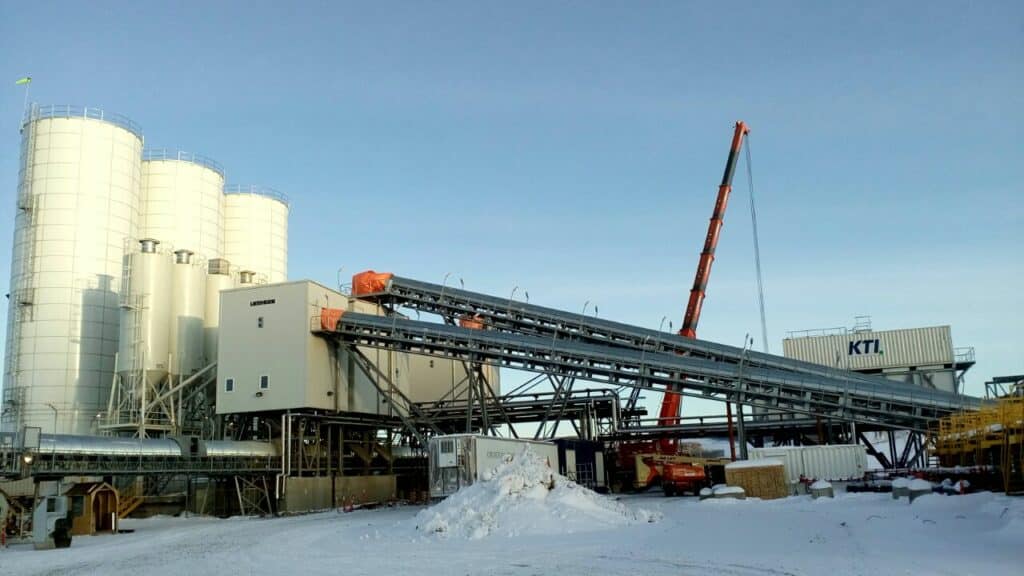

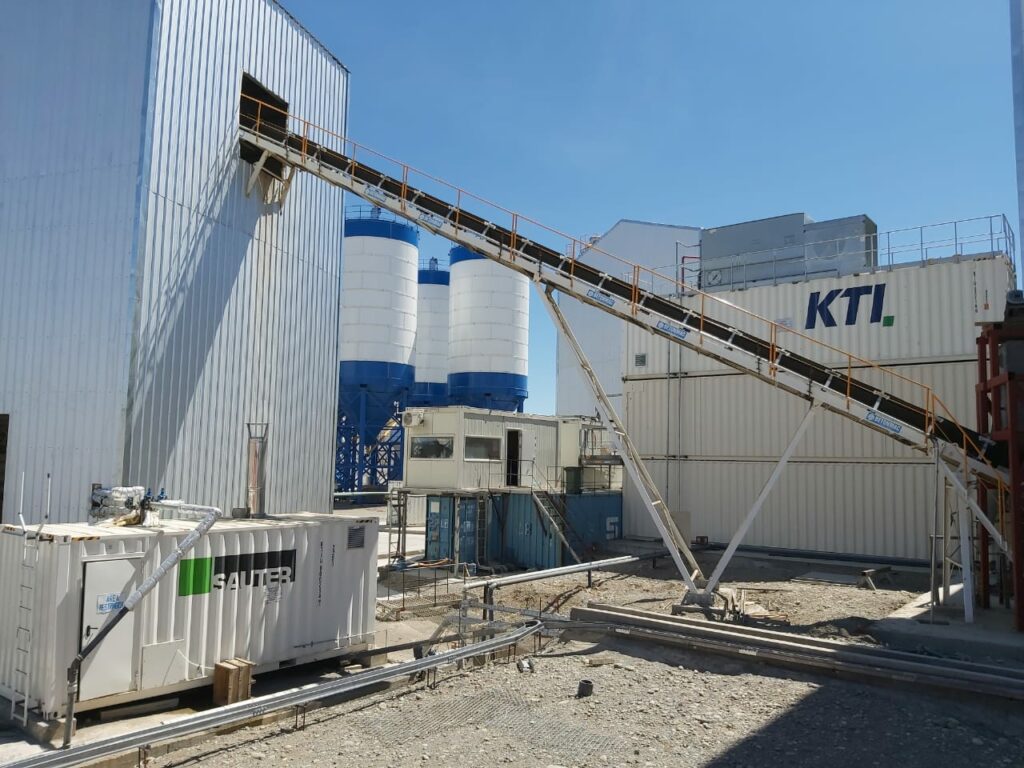

Plants in use for the production of mass concrete gallery

Project consulting​

Our experts will be happy to support you in the planning and implementation of your project.
